Features
- Designed for outdoor restaurants or patios where comfortable heat is needed in breezy and cool conditions
- For use with Natural Gas
- Discreet design with black, satin-gloss painted body and reflectors
- Built with corrosion-resistant materials
- Features decorative grate to protect burners from damage and to guard against the wind
- With an additional, optional burner orifice you can increase or decrease the output of the heater (optional orifice #05443, sold separately)
- Spark ignition heaters ship with 120V 24V /40VA transformers
- Heater is mounted horizontally or at a 45 degree angle (brackets included)
- Operates with 24V or 120V thermostats (item #10371, sold separately, not included)
- No direct venting required
Optional Add-On Accessories
- F114581 Bracket Hanging Set
- 10371 24 Volt Thermostat
- 17374 Hanging Chain Kit Overhead High-Intensity Heaters

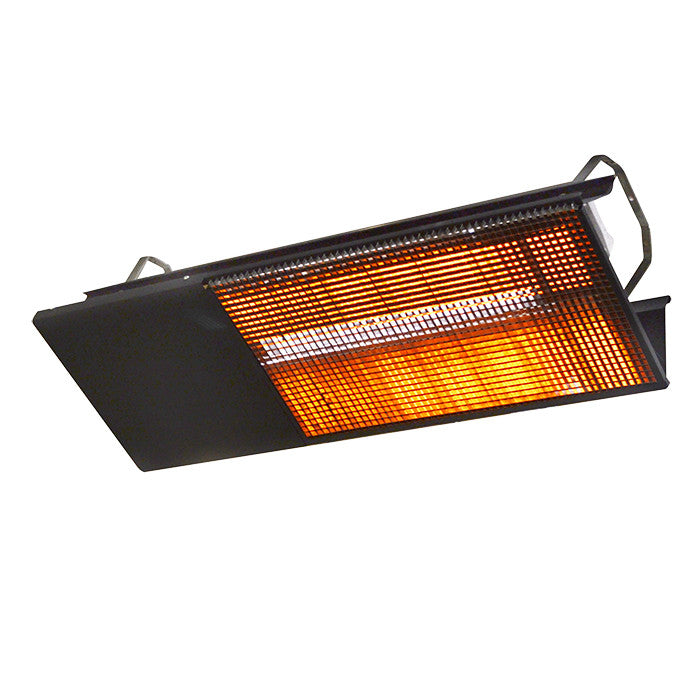

Description
Enjoy instant, cost-saving comfort. Like the rays of the sun, infrared heaters heat floor-level objects, which in turn, heat surrounding air to the desired temperature. Designed for use on patios, at restaurants and anywhere overhead heating is needed in windy and cool conditions.
The decorative black colour is designed to blend in so these heaters are only noticeable by the comfortable heat they provide. This specific model is equipped with Spark Ignition and runs on natural gas. Mounting brackets for a 45° installation are included. It operates with 24V or 120V thermostats (sold separately.)
Comes with a 3-year limited warranty on the burner assembly.
Specifications
|
Weight (Lbs) |
27 |
|
BTU per Hour |
30000 |
|
Fuel Type |
Natural Gas |
|
Ignition |
Electronic |
|
Electrical Rating |
120V / 60Hz |
|
Electrical Connection |
Transformer |
|
Transformer Included |
Yes |
|
Gas Inlet Connection |
1/2in ID FPT |
|
Gas Inlet Pressure Min |
6.6in WC |
|
Gas Inlet Pressure Max |
11in WC |
|
Mounting Height Range |
10ft - 12ft |
|
Clearance to Combustibles: Horizontal |
Top 30in; Side 30in; Back 30in; Below 54in |
|
Venting Required |
Not Required |
|
Thermostat Optional |
Sold Separately |
|
Carton Length (in) |
48.25 |
|
Carton Width (in) |
20.5 |
|
Carton Height (in) |
13.75 |
|
Carton Weight (in) |
40 |
|
Warranty: Gas Control |
1 Year Limited |
|
Warranty: Burner |
3 Year Limited Pro-Rated |
|
Model |
HSRR30SPNG |
