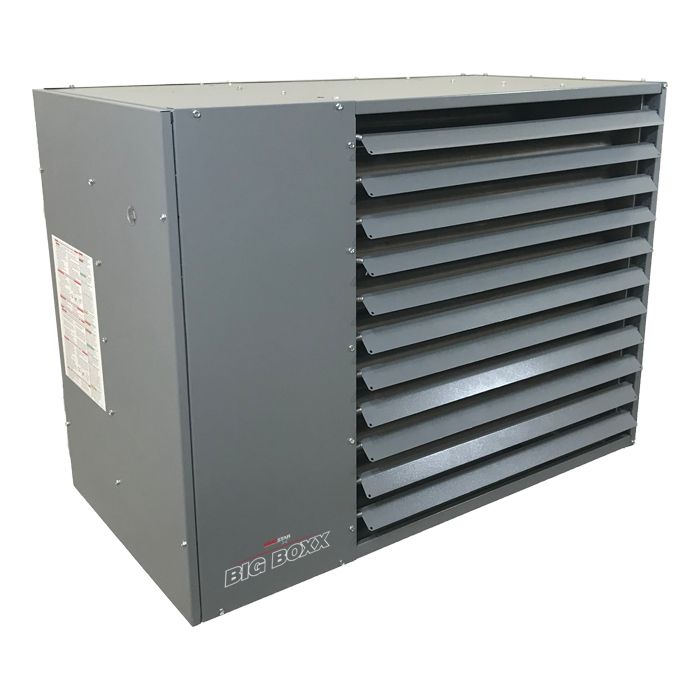

HeatStar 300,000 BTU Separated Combustion Unit Heater with Stainless Steel Heat Exchanger
HeatStar 300,000 BTU Separated Combustion Unit Heater with Stainless Steel Heat Exchanger
Click here to get notified when it's in stock
Couldn't load pickup availability
- All orders ship from Ontario, Canada
- We accept returns within 30 days of delivery
- Please message us if you have any questions
Features
- 300,000 BTU
- Heats up to 10,000 sq. ft.
- Stainless Steel heat exchanger
- Power vented units
- Powder coated cabinet
- 82% thermal efficiency
- Air louvers with 3 locking positions
- All models ship equipped for Natural Gas
- Natural Gas to Propane Conversion Kit sold separately
- Easily installs using 3/8-in -16 threaded rods (sold separately)
- 3 Year Limited Warranty on parts
- (Limited to 1 year in high humidity or caustic environments)
- 10 Year Limited Warranty on stainless steel heat exchanger
Description
The HeatStar HSU300NGPSS is a powerful 300,000 BTU Separated Combustion Unit Heater with Stainless Steel Heat Exchanger is designed for use in factories or farms. It offers efficient heating for areas up to 10,000 sq ft by drawing in fresh air from outside the building. This makes it a suitable option for humid or corrosive environments, such as greenhouses or chemical factories. Additionally, its versatility allows for installation in either a standard combustion configuration or as a separated combustion unit. With a durable stainless steel heat exchanger and three locking positions for the air louvers, this heater offers protection and precise heat distribution. Keep your workplace warm with the HeatStar 300,000 BTU Separated Combustion Unit Heater.
Specifications
| Model | HSU300NGPSS (F163035) |
|---|---|
| Input BTU | 300,000 |
| Heating Area (Sq. Ft.) | 10,000 |
| Electrical Rating | 110 vac |
| Gas Inlet Connection | 1/2in |
| Gas Inlet Pressure Min | 3.5in WC |
| Gas Inlet Pressure Max | 14in WC |
| Clearance to Combustibles: Horizontal | Above 6in; Behind 18in; Sides 6in |
| Venting: Length Min/Max | 5ft - 50ft |
| Venting: Exhaust | 6in Diameter |
| Venting Direction | Horizontal or Vertical |
| Heat Exchanger | Stainless Steel Tubing |
| Thermostat Optional | Not Applicable |
| Fuel Type | Natural Gas |
| Ignition | Electronic |
| Item Length (in) | 35.8" x 40.5" x 31.8" |
| Item Weight | 264 lbs |
| Warranty | 10 year limited on stainless steel heat exchanger (only applies to Tectoral units) |
