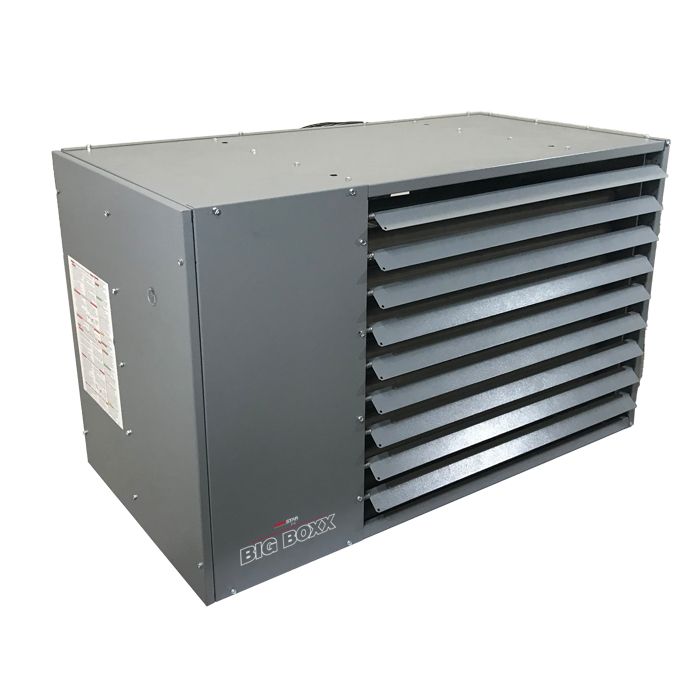

HeatStar 200,000 BTU Separated Combustion Unit Heater with Stainless Steel Heat Exchanger
HeatStar 200,000 BTU Separated Combustion Unit Heater with Stainless Steel Heat Exchanger
Other shipping rates calculated at checkout.
Click here to get notified when it's in stock
Couldn't load pickup availability
- All orders ship from Ontario, Canada
- We accept returns within 30 days of delivery
- Please message us if you have any questions
Features
- 200,000 BTU
- Heats up to 6,700 sq. ft.
- Stainless Steel heat exchanger
- Power vented units
- Powder coated cabinet
- 82% thermal efficiency
- Air louvers with 3 locking positions
- All models ship equipped for Natural Gas
- Natural Gas to Propane Conversion Kit sold separately
- Easily installs using 3/8-in -16 threaded rods (sold separately)
- 3 Year Limited Warranty on parts
- (Limited to 1 year in high humidity or caustic environments)
- 10 Year Limited Warranty on stainless steel heat exchanger
Description
The HeatStar HSU200NGPSS 200,000 BTU Separated Combustion Unit Heater with Stainless Steel Heat Exchanger provides optimal heat for large spaces such as factories or farms. With its capacity to efficiently deliver 200,000 BTU, it can cover up to 6,700 sq ft. This heater utilizes fresh air from the outdoors and can be utilized in both humid and corrosive environments, making it suitable for use in greenhouses and chemical plants. It can also be installed in a standard combustion configuration for added versatility. Additionally, the stainless steel heat exchanger offers extra protection in humid conditions. The air louvers feature three adjustable positions to effectively direct heat to where it is needed. Keep your work environment comfortably warm with the HeatStar 200,000 BTU Separated Combustion Unit Heater.
Specifications
| Model | HSU200NGPSS (F163033) |
|---|---|
| Input BTU | 200,000 |
| Heating Area (Sq Ft) | 6,700 |
| Electrical Rating | 110 vac |
| Gas Inlet Connection | 1/2in |
| Gas Inlet Pressure Min | 3.5in WC |
| Gas Inlet Pressure Max | 14in WC |
| Clearance to Combustibles: Horizontal | Above 6in; Behind 18in; Sides 6in |
| Venting: Length Min/Max | 5ft - 50ft |
| Venting: Exhaust | 4in Diameter |
| Venting Direction | Horizontal or Vertical |
| Heat Exchanger | Stainless Steel Tubing |
| Thermostat | Not Applicable |
| Fuel Type | Natural Gas |
| Ignition | Electronic |
| Dimensions (L x W x H) | 35" x 40.5" x 26.3" |
| Weight | 212 lbs |
| Warranty | 10 year limited on stainless steel heat exchanger (only applies to Tectoral units) |
